Dry Cleaning Machine

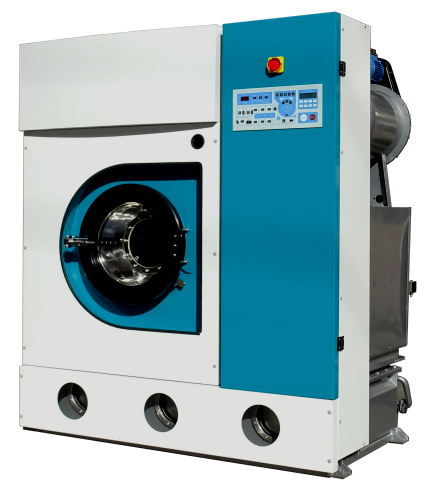

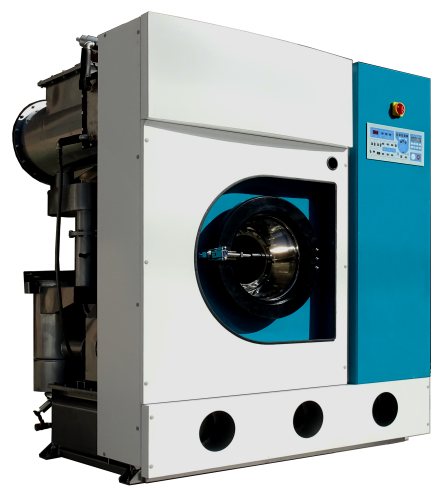

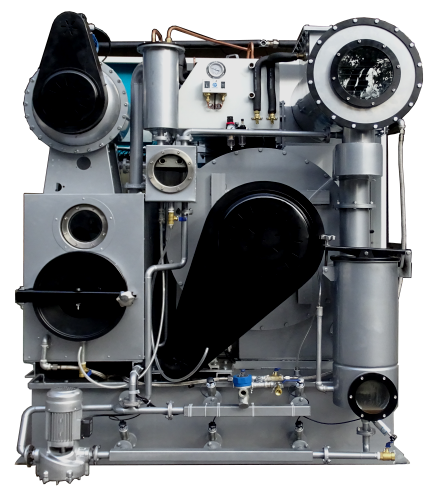

GXQ type tetrachloroethylene dry cleaning machine

  • Home
  • GXQ type tetrachloroethylene dry cleaning machine
LDF Machinery Pvt. Ltd.

CHARACTERSTIC AND PARAMETERS

  • The professional computer board has stable and reliable working performance, simple operation, good human-computer dialogue interface, and the LCD screen can display the working status in real time to help monitor the machine running in the best state. Its light touch panel has good sealing, waterproof and dustproof, and has perfect interlocking function between keys. There are a variety of programs for the operator to choose, and the washing is completed with one button during automatic operation. Automatic/manual operation mode can be selected freely, which is flexible and convenient. The time and temperature of washing and drying can be freely selected.
  • The latest refrigeration recovery has higher efficiency and recovery rate.
  • High-efficiency nylon filter, easier to operate and cleaner to wash.
  • Advanced frequency conversion and energy reuse technology make the operation more stable and energy-saving.
  • The main parts are made of stainless steel, with longer service life.
  • The solenoid valve and pneumatic valve are jointly controlled, and the valve can be opened and closed reliably.
  • Open the door for automatic air suction, and the activated carbon adsorber recovers the residual solvent gas.
  • Three solvent tanks, color depth is separated, oil level gauge is displayed, and the tank is self-cleaning.
Model GXQ-10 GXQ-12 GXQ-15 GXQ-16 GXQ-20 GXQ-25
Heating method Electric heating/steam heating Electric heating/steam heating Electric heating/steam heating Steam heating Steam heating Steam heating
Rated capacity 10 Kg 12 Kg 15 Kg 16 Kg 20 Kg 25 Kg
Drum diameter φ750 mm φ750 mm φ820 mm φ900 mm φ900 mm φ970 mm
Drum depth 405 mm 485 mm 480 mm 480 mm 580 mm 580 mm
Volume of work box 138L×3 180L×3 240L×3 280L×3 320L×3 360L×3
Distillation chamber volume 158L 158L 220L 250L 280L 280L
Washing speed 36r/min 36r/min 34r/min 34r/min 34r/min 34r/min
High spin drying rotary speed 520r/min 520r/min 500r/min 500r/min 500r/min 500r/min
Distillation rate 60 min 60 min 60 min 60~90 min 60~90 min 60~90 min
Washing motor power 1.5 kw 1.8 kw 2.2 kw 3 kw 4 kw 4 kw
Liquid pump power 0.55 kw 0.55 kw 0.75 kw 0.75 kw 0.75 kw 0.75 kw
Fan power 0.55 kw 0.55 kw 0.75 kw 0.75 kw 1.1 kw 1.1 kw
Filter motor power 0.37 kw 0.37 kw 0.37 kw 0.55 kw 0.55 kw 0.55 kw
Compressor power 1.1 kw 1.1 kw 1.5 kw 1.5 kw 2.2 kw 2.2 kw
Drying power 5.4 kw 5.4 kw 5.4 kw vapour vapour vapour
Distillation power 5 kw 6 kw 6 kw vapour vapour vapour
Voltage 220V/380V 220V/380V 220V/380V 380V/415V 380V/415V 380V/415V
Width 1650mm 1650mm 1750mm 1800mm 1800mm 1880mm
Depth 1200mm 1230mm 1230mm 1380mm 1480mm 1560mm
Height 2080mm 2080mm 2160mm 2280mm 2280mm 2380mm
Weight 860 kg 980 kg 1080 kg 1280 kg 1480 kg 1580 kg
