Dry Cleaning Machine

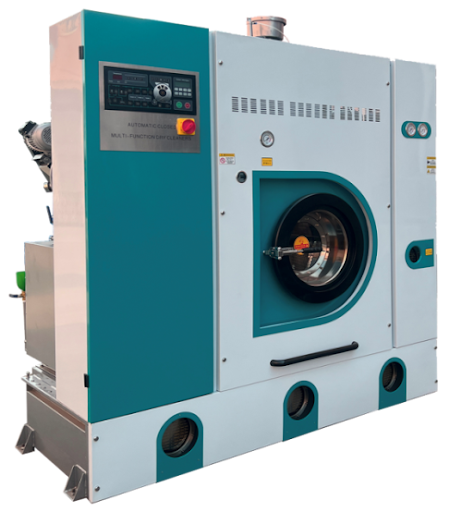

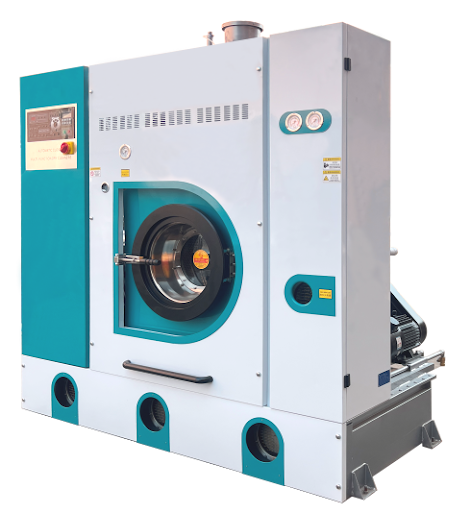

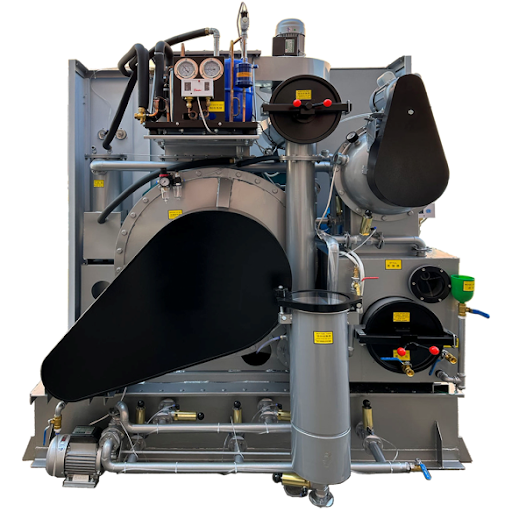

GXP type tetrachloroethylene dry cleaning machine
- Home
- GXP type tetrachloroethylene dry cleaning machine
LDF Machinery Pvt. Ltd.
CHARACTERSTIC AND PARAMETERS
- Automatic/manual operation mode can be selected according to the degree of dirt on clothes, which is flexible and convenient.
- Humanized and process-based intelligent computer control, which is more reliable.
- Automatic fault diagnosis, alarm and display, which is more convenient for repair and maintenance.
- The latest refrigeration recovery, which is more efficient, has a recovery rate of up to 99%.
- High-efficiency nylon filter, which is easier to operate and cleaner to wash.
- Advanced frequency conversion and energy reuse technology, which is more stable and energy-saving.
- Advanced frequency conversion and energy reuse technology, which is more stable and energy-saving.
| Model | GXP-8 | GXP-10 | GXP-12 | GXP-15 | GXP-16 | GXP-18 | GXP-20 |
|---|---|---|---|---|---|---|---|
| Rated capacity (Kg) | 8 | 10 | 12 | 15 | 16 | 18 | 20 |
| Drum size (mm) | φ720×380 | φ720×430 | φ720×480 | φ720×600 | φ950×400 | φ950×450 | φ950×500 |
| Motor power (KW) | 1.5 | 2.2 | 2.2 | 2.2 | 3 | 4 | 4 |
| Fan power (KW) | 0.55 | 0.55 | 0.55 | 1.1 | 1.1 | 1.1 | 1.5 |
| Washing/High stripping speed (rpm) | 35/400 | 35/400 | 40/400 | 40/400 | 38/400 | 38/400 | 38/400 |
| Drying power (KW) | 6 | 6 | 9 | 9 | 9 | 9 | 9 |
| Distillation power (KW) | 6 | 6 | 9 | 9 | 9 | 9 | 9 |
| Distillation pressure (MPa) | 0.4 | 0.4 | 0.4 | 0.4 | 0.4 | 0.4 | 0.4 |
| Rated voltage (V) | 220/380 | 220/380 | 220/380 | 220/380 | 380 | 380 | 380 |
| Weight (Kg) | 1000 | 1050 | 1100 | 1200 | 1300 | 1300 | 1500 |
| Overall dimension (mm) | 1700×1350×2050 | 1700×1350×2050 | 1700×1350×2100 | 1700×1450×2120 | 2070×1440×2250 | 2070×1440×2250 | 2070×1450×2250 |
