LDF Machinery Pvt. Ltd.
CHARACTERSTIC AND PARAMETERS
- The inner drum adopts stainless steel structure, which is smooth, clean and does not damage the fabric; The outer drum adopts anti-corrosion treatment; Good corrosion resistance.
- Variable frequency speed regulation, high drying rate, greatly reducing drying time, effectively reducing clothing wear rate;
- The storage door is made of stainless steel with light body, easy and convenient opening and closing. The door is equipped with impact resistant and heat resistant glass. The washing condition of fabric can be observed directly when the machine is running.
- The washing drum suspension device, hydraulic damping friction damping, reduces the vibration in the dehydration process, and effectively solves the weakness of large dehydration vibration of the washing machine for a long time.
- The washing and dehydration machine can be used for two purposes, and the frequency conversion speed regulation can reduce the space occupation, save the loading and unloading time of clothes, and improve the labor efficiency.
- This machine has small size, beautiful shape, compact structure, convenient operation, good washing effect, simple maintenance, and is an ideal equipment for fabric washing.
- It adopts microcomputer control and LCD display, which is easy to operate and reliable.

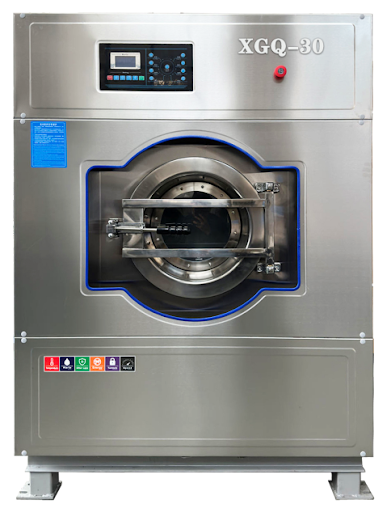

| Model | Unit | XGQ-15 | XGQ-20 | XGQ-25 | XGQ-30 |
|---|---|---|---|---|---|
| Drum size | mm | φ700*430 | φ700*480 | φ800*500 | 800*580 |
| Washing speed | RPM | 45 | 45 | 45 | 45 |
| High spin speed | RPM | 750 | 750 | 750 | 800 |
| Motor power | KW | 1.5 | 2.2 | 2.2 | 3 |
| Inverter power | KW | 1.5 | 2.2 | 3.7 | 4 |
| Electric heating power | KW | 6 | 6 | 6 | 10 |
| Cold/hot water pipe | mm | φ20 | φ20 | φ20 | 25 |
| Diameter of drainage pipe | mm | φ50 | φ50 | φ50 | 50 |
| Water consumption | Kg/h | 210 | 300 | 387 | 400 |
| Steam pipe size | mm | φ15 | φ15 | φ15 | 15 |
| Steam pressure | MPa | 0.4~0.5 | 0.4~0.5 | 0.4~0.5 | 0.4~0.5 |
| Inlet pressure | MPa | 0.2~0.3 | 0.2~0.3 | 0.2~0.3 | 0.2~0.3 |
| External dimensions | mm | 1100*1080*1640 | 1100*1080*1640 | 1190*1250*1700 | 1290*1250*1700 |
| Whole machine weight | Kg | 550 | 600 | 700 | 800 |
