CHARACTERSTIC AND PARAMETERS

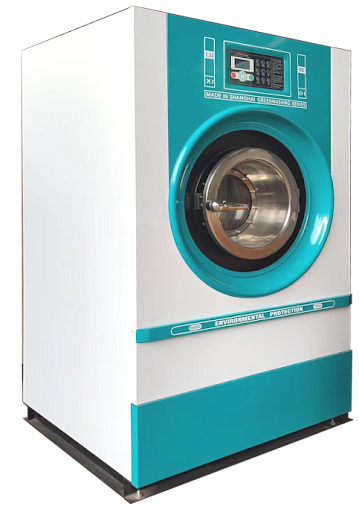

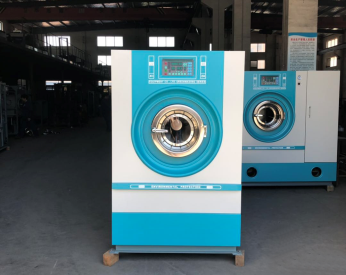

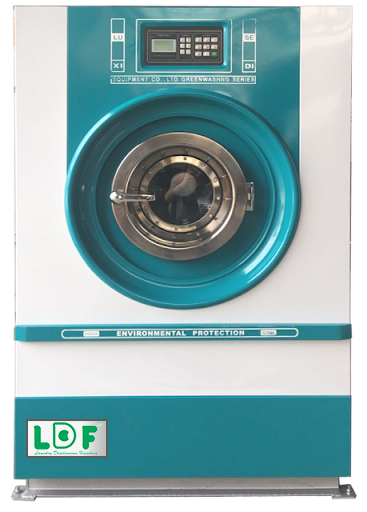

- XGQ series automatic elution dual-purpose machine is a new generation product in the industrial washing industry. It integrates elution functionality and uses a suspension damping device, featuring low vibration, high washing efficiency, and simple, flexible operation.
- The programmable computer controller supports both automatic and manual operation modes. The user-friendly Chinese interface and large LCD display offer high automation, easy operation, and clear washing procedures. Manual mode allows selection of wash cycle, number of washes, dehydration time, and more.
- Designed with a lower-suspended mechanical shockproof structure, the machine offers low vibration, requires no foundation, saves installation costs, operates quietly, and has a long service life.
- Uses an imported sealing ring to prevent leakage and ensure high fabric cleanliness.
- Variable frequency and stepless speed regulation allow smooth operation and seamless transition between washing and desulphurization, consuming less power than traditional two-speed motors.
| Model | XGQL-15 | XGQL-20 | XGQL-25 |
|---|---|---|---|
| Washing capacity (Kg) | 15 | 20 | 25 |
| Motor power (KW) | 1.5 | 2.2 | 3 |
| Converter power (KW) | 1.5 | 2.2 | 4 |
| Rated voltage (V) | 220 | 220/380 | 380 |
| Cold water inlet (inch) | 3/4 | 3/4 | 3/4 |
| Steam inlet (inch) | 1/2 | 1/2 | 1/2 |
| Steam consumption per time (Kg) | 15 | 18 | 21 |
| Heating power (KW) | 6KW | 6KW | 6KW |
| Water consumption per time (Kg) | 340 | 450 | 550 |
| Weight (Kg) | 500 | 550 | 600 |
| Overall dimension (mm) | 970×1200×1740 | 970×1200×1740 | 1260×1200×1740 |
