Drying Machine
XXSH type down wash up drying integrated machine
- Home
- XXSH type down wash up drying integrated machine
LDF Machinery Pvt. Ltd.
CHARACTERSTIC AND PARAMETERS

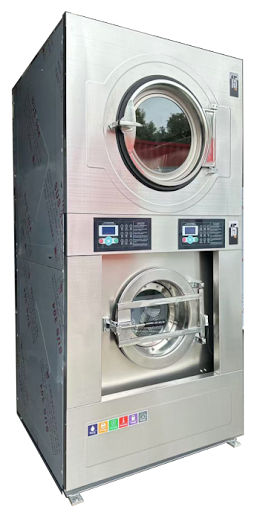

- 1. The integrated washing and drying machine combines water washing, dehydration, and drying in one unit. The lower part handles washing and dehydration, while the upper part performs drying. It features a compact design, appealing appearance, and space-saving structure.
- 2. Each function operates simultaneously and is independently controlled. This design improves efficiency by reducing the total wash/dry time and minimizing the machine’s footprint.
- 3. Standard configuration includes a 15kg washer and a 15kg dryer. Optional configurations include 20kg or 25kg washing and drying units.
- 4. Comes with an LCD display computer board that shows real-time temperature, water level, and time. Supports program customization, manual control, and full automation.
| Model | XXSH-15 XGQ-15 |
HG-15 | XXSH-20 XGQ-20 |
HG-20 | XXSH-25 XGQ-25 |
HG-25 |
|---|---|---|---|---|---|---|
| Capacity (kg) | 15 | 15 | 20 | 20 | 25 | 25 |
| Motor Power (KW) | 1.5 | 0.45 | 1.5 | 0.45 | 2.2 | 0.55 |
| Heating Power (KW) | 6 | / | 6 | / | 8 | / |
| Converter Power (KW) | 1.5 | / | 2.2 | / | 3.7 | / |
| Drying Power (KW) | / | 9 | / | 9 | / | 12 |
| Voltage (V) | 220/380 | |||||
| Washing Speed (rpm) | 52 | 36 | 52 | 36 | 52 | 36 |
| High Detachment Speed (rpm) | 620 | / | 620 | / | 620 | / |
| Inlet Diameter (inch) | 3/4 | / | 3/4 | / | 6 | / |
| Drainage Caliber (inch) | 2 | / | 2 | / | 2 | / |
| Exhaust Diameter (mm) | / | 100 | / | 100 | / | 100 |
| Drum Size (mm) | Ø640×480 | Ø700×480 | Ø680×500 | Ø700×550 | Ø700×600 | Ø700×650 |
| Weight (kg) | 800 | 800 | 825 | 825 | 850 | 850 |
| Dimension (mm) | 1070×1100×2100 | 1070×1300×2100 | 1100×1200×2100 | |||
