CHARACTERSTIC AND PARAMETERS

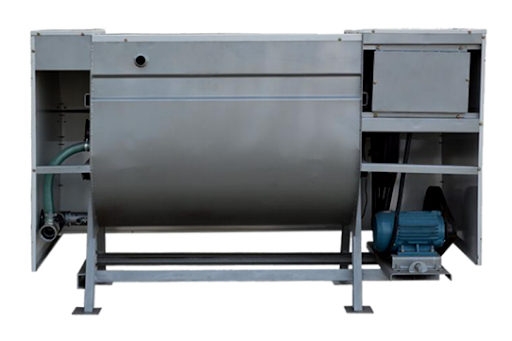

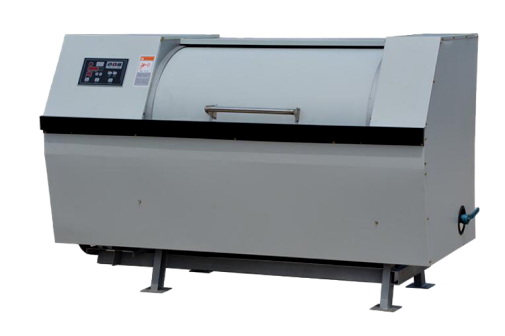

- The horizontal roller type is adopted, and the inner cylinder is made of high-quality stainless steel plate. It is flat, bright, corrosion resistant, and has little wear and no damage to the fabric. The machine has a long service life.
- The inner cylinder door cover is equipped with a stainless steel safety locking mechanism, and the outer cylinder door cover is equipped with an electrical interlock device, which ensures safe and reliable operation.
- It adopts triangular belt transmission, with small vibration, stable and durable operation.
| Model | unit | XGP-25 | XGP-35 | XGP-50 | XGP-70 | XGP-100 | XGP-150 | XGP-200 | XGP-250 | XGP-300 |
|---|---|---|---|---|---|---|---|---|---|---|
| Washing capacity | Kg | 25 | 35 | 50 | 70 | 100 | 150 | 200 | 250 | 300 |
| drum diameter | mm | 550 | 720 | 820 | 950 | 950 | 1080 | 1080 | 1200 | 1300 |
| Drum depth | mm | 880 | 930 | 1000 | 1000 | 1400 | 1600 | 2000 | 2260 | 2260 |
| Cleaning speed | rpm | 35 | 35 | 35 | 38 | 38 | 31 | 31 | 31 | 29 |
| Motor Power | KW | 1.1 | 1.1 | 1.5 | 3 | 3 | 4 | 5.5 | 7.5 | 11 |
| Rated voltage | V | 380 | 380 | 380 | 380 | 380 | 380 | 380 | 380 | 380 |
| Steam pressure | MPa | 0.4~0.6 | 0.4~0.6 | 0.4~0.6 | 0.4~0.6 | 0.4~0.6 | 0.4~0.6 | 0.4~0.6 | 0.4~0.6 | 0.4~0.6 |
| Steam consumption | Kg/h | 30 | 30 | 40 | 60 | 70 | 110 | 140 | 180 | 210 |
| Overall length | mm | 1730 | 1850 | 1920 | 1900 | 2300 | 2500 | 2940 | 3140 | 3514 |
| Overall width | mm | 780 | 950 | 1050 | 1450 | 1450 | 1400 | 1480 | 1500 | 1850 |
| Overall height | mm | 1050 | 1200 | 1260 | 1420 | 1420 | 2100 | 2100 | 2300 | 2300 |
| Weight | Kg | 300 | 350 | 450 | 750 | 900 | 1500 | 1950 | 2300 | 2600 |
