LDF Machinery Pvt. Ltd.
CHARACTERSTIC AND PARAMETERS
- 1. The design structure is reasonable and the operation is convenient. The main structure of the electric rotary clothes hanger transmission system is made of high-quality square steel, and the guide rail is 5 × 5cm square steel open mold bending, sheet metal baking paint.
- 2. Efficient transmission device, reliable performance. The transmission steel belt is made of imported special stainless steel with high hardness, high toughness and no stretching to ensure smooth transmission and durability.
- 3. Smooth transmission and transportation, fast and labor-saving. The metal surface of each transmission bearing is treated by injection molding to resist wear and low noise. Each hanging hole can hang 1-2 clothes on average.
- 4. The whole machine is installed on the floor without foundation.

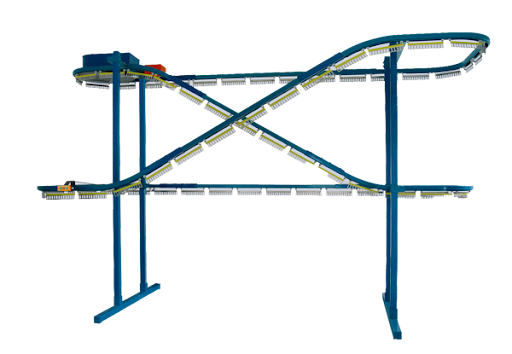

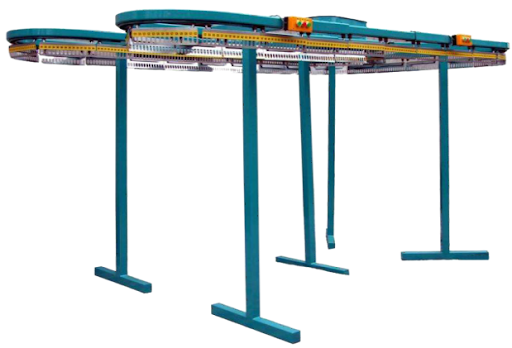

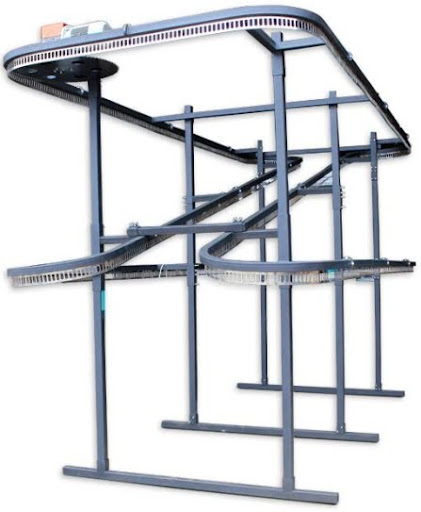

- 5. The styles of conveyor lines include O-shaped, U-shaped, X-shaped, and Z-shaped, which can be customized according to the size of the site. The maximum number of points that can be customized is 2000.
| Model | SSX-308 (308点) | SSX-660 (660点) | SSX-750 (750点) | SSX-936 (936点) |
|---|---|---|---|---|
| Power supply (V) | 220/380 | 220/380 | 220/380 | 220/380 |
| Motor power (W) | 750 | 1500 | 1500 | 1500 |
| Clothing position limit (Kg/position) | 1.2 | 1.2 | 1.2 | 1.2 |
| Body size (mm) | 4100×1300×2000 | 5000×2300×3200 | 5800×2300×3200 | 5800×2700×3200 |
| Weight (Kg) | 290 | 430 | 460 | 500 |
